Unmatched Speed & Intelligence with the leading DC Fast Charger UAE – MaxiCharger DC Fast
Up to 240kW | AI Battery Optimization | 99.5% EV Compatibility
Looking for the best DC Fast Charger UAE has to offer? The MaxiCharger DC Fast is a state-of-the-art EV charging solution, delivering up to 240kW of ultra-fast charging power. With AI-driven battery optimization, dynamic load balancing, and triple protection technology, it ensures maximum safety, efficiency, and reliability for a seamless and efficient EV charging experience.
Designed for commercial hubs, shopping malls, hotels, and high-traffic areas in Dubai, Abu Dhabi, and across the UAE, this DC fast charger UAE is built for reliability, efficiency, and future-ready performance.
Enhance your battery life with AI-driven health charging mode, offering up to 20% extra battery efficiency. The 27-inch display delivers real-time Charger+Cloud BMS+VCI analysis, ensuring safety and efficiency for both vehicle and user, it a top choice for EV charging infrastructure in the UAE

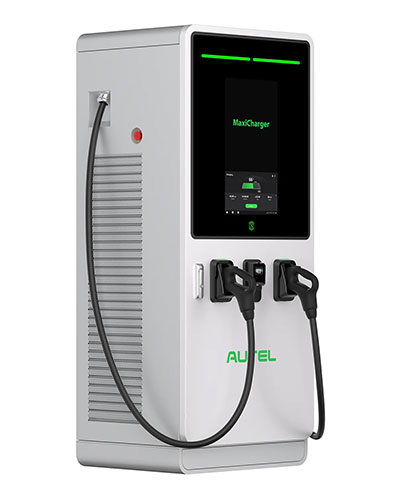

MaxiCharger DC Fast
Why MaxiCharger DC Fast is the Leading DC Fast Charger UAE?
Key Features
Everything You Need to Know About DC Fast Chargers UAE
Technical Specifications
DC Output Connection |
|
|---|---|
| Charging Mode | Mode 4: CCS1 |
| Output Power | 60 kW / 120 kW / 180 kW / 240 kW |
| Output Voltage | 150-1000 V |
| Output Current | CCS1: Standard: 200A; Optional 300A (Nominal), 400A (Peak) CHAdeMO: 125A or 200A |
| Number of Outputs | 2 × CCS1, or 1 × CCS1 + 1 × CHAdeMO |
| Average Efficiency at Full Power | ≥96% |
AC Input Connection |
|
|---|---|
| Earthing System | 3P, PE (No neutral) |
| Input Voltage | 3-phase 480V AC ±10% ~ -15% |
| Input Frequency | 60 Hz |
| Power Factor | ≥0.98 |
| Harmonic Distortion (THDi) | ≤ 5% |
General Characteristics |
|
|---|---|
| IP Rating | NEMA 3R |
| Operating Altitude | 2,000 m |
| Operating Temperature Range | -35℃ ~ +55℃ |
| Storage Temperature Range | -40℃ ~ +70℃ |
| Mounting | Floor Standing |
| Dimensions (H × W × D) | 1950 × 820 × 600 mm (60kW/120kW) 1950 × 820 × 700 mm (180kW/240kW) |
User Interface |
|
|---|---|
| Screen Type | 27-inch LCD Touch Screen (15.6-inch optional) |
| Status Indication | LED / LCD / App |
| User Interface | Autel Charge APP; Autel Charge Cloud |
| Connectivity | 4G, Bluetooth, Wi-Fi, Ethernet |
| Communication Protocols | OCPP 1.6J (Upgradeable to OCPP 2.0.1) |
| User Authentication | APP, RFID Card, Credit Card (Optional) |
Software Update |
|
|---|---|
| Software Update | OTA updates via web portal |
Certification & Standards |
|
|---|---|
| Safety & Compliance | UL 2202, UL 2231-1, UL 2231-2, CSA No.107.1-16, NEC Article 625, ISO 15118 Plug & Charge |
| Certification | FCC 15 Class A (Class B optional) |
| Warranty | 24 months, warranty extension possible |
Everything You Need to Know About DC Fast Charger UAE
FAQ's
How fast does MaxiCharger DC Fast charge an EV?
MaxiCharger DC Fast delivers up to 240kW of power, providing 400km of range in just 10 minutes. With its high-speed capabilities, it ensures rapid charging for both individual users and commercial fleets, making it one of the fastest DC fast chargers in UAE.
Is MaxiCharger DC Fast compatible with all electric vehicles?
Yes! With 99.5% EV compatibility, MaxiCharger DC Fast supports major EV brands worldwide, including CCS1 and CHAdeMO connectors for flexible charging options.
Can the charger be used in extreme weather conditions?
Absolutely! Built with a NEMA 3R-rated enclosure, MaxiCharger DC Fast is weatherproof and durable, making it ideal for both indoor and outdoor installations in diverse climates.
Does MaxiCharger DC Fast offer smart charging and remote monitoring?
Yes! It features intelligent battery diagnostics, real-time analytics, and cloud-based remote monitoring, ensuring optimized performance and seamless maintenance.
What payment options does the charger support?
Users can pay conveniently via mobile app, RFID card, credit card, and contactless payment, ensuring a seamless and flexible transaction process.
Can MaxiCharger DC Fast charge multiple vehicles simultaneously?
Yes! With Dynamic Load Balancing and dual charging ports, it can efficiently charge two vehicles at once, optimizing power distribution for better efficiency.
Is the charger upgradeable for future EV technology?
Absolutely! MaxiCharger DC Fast is OCPP 1.6J compliant (upgradeable to OCPP 2.0.1), ensuring compatibility with future EV advancements and smart charging networks.
